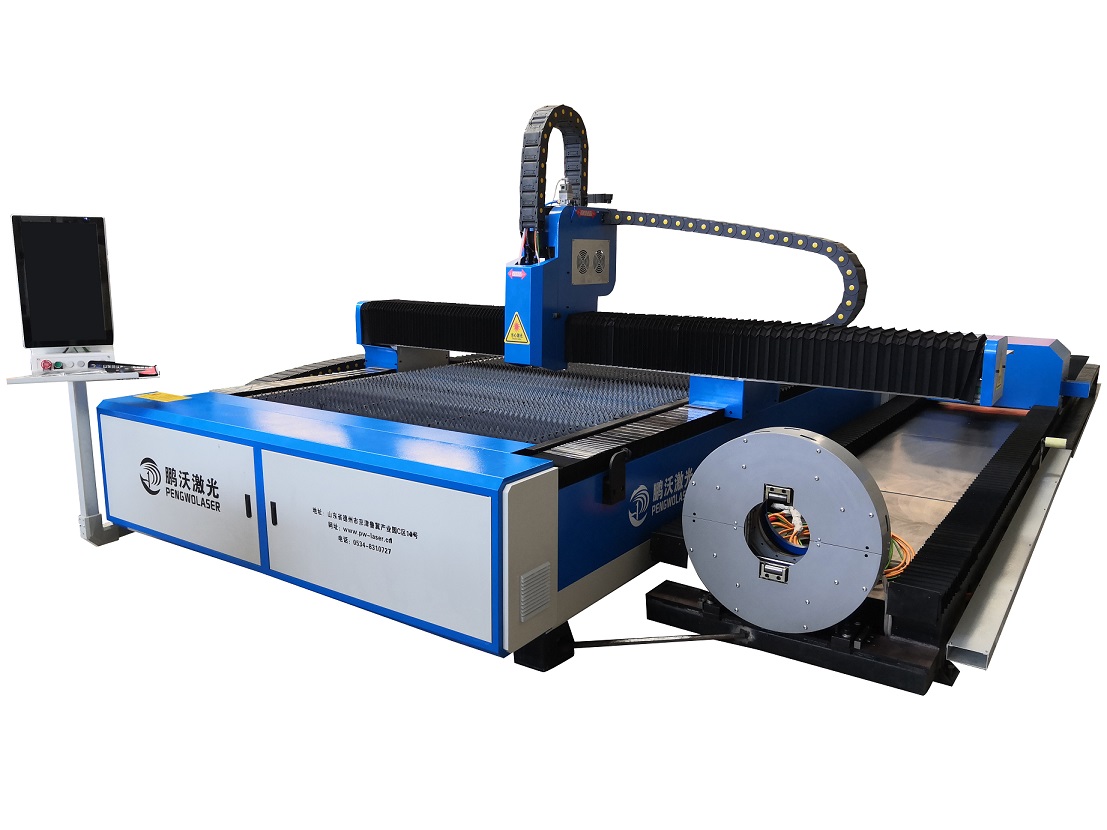

CNC laser cutting machine guide rail device and adjustment is a very important thing, cutting machine guide rail device and adjustment to improve the service life of laser cutting machine and cutting accuracy, so the workshop must do a good job of cutting machine guide rail device and adjustment. The guide rail can realize the high precision motion of laser cutting machine under high load. The following suggestions are put forward for adjusting the guide rail of CNC laser cutting machine:
1. Measure the flatness of both ends of the main rail and the auxiliary guide rail with the theodolite with the accuracy of 1/10000mm, and adjust the flatness of the main and auxiliary guide rail at both ends with the higher bolts of the guide rail, so that the flatness of the main and auxiliary guide rail at both ends is maintained within 0.5mm.
2. Tighten the 1/2000mm standard steel wire at both ends of the guide rail, and adjust the adjusting screws on the two backing plates of the guide rail, so that the distance between the front ends of the guide rail and the standard steel wire is a certain value, and this distance is used as the standard distance.
3. The distance between the main and auxiliary guide rails at both ends should be the span of the machine tool when measured with a steel tape measuring 1/2000mm with 20N tension. Otherwise, the whole steel wire should be used to adjust the guide rail and adjust the steel wire at the same time to ensure that the standard distance remains unchanged.
Four, with the adjustment pin and feeler ruler one by one to adjust the distance between the two ends of each leading rail and the standard wire, adjust to the standard distance.
5. After the calibration of the auxiliary guide rail is qualified, the connecting bolts between the upper guide rail should be carefully tightened, and the guide rail should be pressed with a press plate. At the same time, all parts of the guide rail should be carefully checked not to move and deformation, and the horizontal plane and front side of the guide rail joint should be smooth.
Six, with a pressure plate to press the end of the main and auxiliary guide rail each, in order to adjust the guide rail horizontal, longitudinal levelness, the flatness of the main and auxiliary guide rail, the main and auxiliary guide rail spacing basis, the straightness of the guide rail to the standard distance between the steel wire and the side of the guide rail as the benchmark.
Guide rail is like a car tire, the device is not stable will cause an accident, guide rail is the same as a good guide cutting machine will run smoothly on the above, cutting quality is good. CNC laser cutting machine guide adjustment to do the above points, the use of CNC cutting machine will be very smooth, will also adjust the service life of CNC cutting machine and cutting precision. The working principle of CNC cutting machine, simply can be considered as a path cutting way, because of the use of CNC automatic operation, generally need to implement the process programming for cutting the whole board, to achieve the one-time cutting processing of the whole board.
